Introduction

TimescaleDB (https://www.timescale.com/) is an open-source Postgres extension designed for running real-time analytics on time-series data. It is developed by Tiger Data and designed for high write throughput and efficient time-based queries, while still allowing you to use standard SQL and the Postgres ecosystem.

The CDP Logger TimescaleDatastore integration stores logged values and events in a Postgres database with the TimescaleDB extension enabled.

Quick Start

• Install Postgres and TimescaleDB (see Installing TimescaleDB) or use a cloud provider like TigerData Cloud. Use version 2.24.0 or newer of TimescaleDB.
• Add a CDP Logger component to your application as described in the How to Setup Logging in Automation System manual but use TimescaleDatastore.TimescaleDB as the datastore type instead of CDPCompactDatastore.
• Navigate into the TimescaleDB node and fill the following properties:

Configuration

Add TimescaleDatastore.TimescaleDB from the Resource tree to your CDP Logger component. The following are the most important properties to fill:

ValueAggregates

The ValueAggregates section is used to set up TimescaleDB continuous aggregate views on top of the raw logged data. These views pre-aggregate data into buckets of a specified width, which can significantly improve query performance for longer time ranges at the cost of some time resolution. For each bucket, the aggregate views store the minimum, maximum, and last values observed in each bucket for every logged node. Each aggregate can have its own retention policy, allowing you to optimize storage by keeping coarser aggregates for longer periods.

The aggregate with the smallest configured bucket width reads from the measurement table, while coarser aggregates are built hierarchically from the next finer aggregate to reduce server-side refresh cost. When reading data using CDP tools (see Viewing Data), the reader uses these tables automatically when the query resolution matches or is coarser than the aggregate bucket width, and falls back to the raw measurement table for finer-resolution reads. In case of different retention policies, the reader automatically combines data from the aggregates and the raw table to return the most complete result for the queried time range.

Each ValueAggregate has the following properties:

By default, there are some pre-configured aggregates with commonly used bucket widths.

• PerSecond - bucket width 1 s
• PerMinute - bucket width 60 s
• PerHour - bucket width 3600 s
• PerDay - bucket width 86400 s

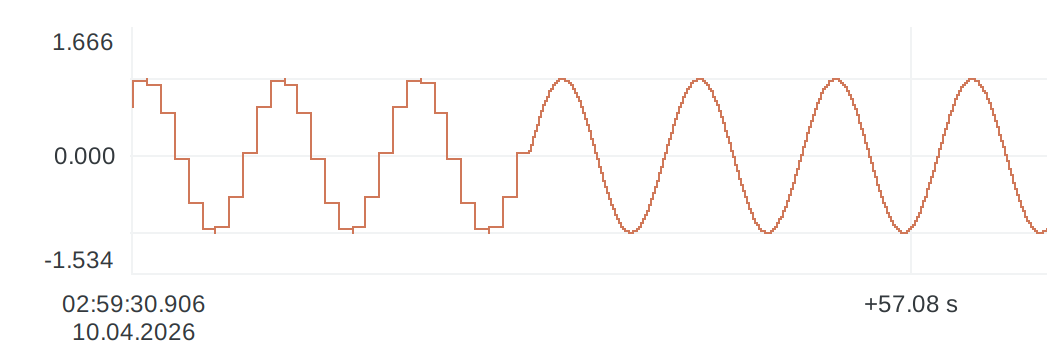

If the defaults are not suitable, they can be disabled by unchecking the Enabled property. For each aggregate, the retention can be configured separately (the default is to inherit the retention from ValueLogRetentionDays).

New aggregates with custom bucket widths and retention policies can be added by adding new rows to the section. This is most useful when optimizing the bucket width and retention policy for your data, e.g. when per second log uses too much disk space, but per minute is too coarse for your queries, one could add a per 10 second aggregate with a retention of 6 months.

Modifying Aggregates

If the user stops the application, modifies ValueAggregates, and starts it again:

• Newly added aggregates are created automatically.
• Changing only the RetentionDays updates the retention policy of the existing aggregate view. This is the only option that can be modified during runtime, as changing it does not require dropping and re-creating the view.
• Aggregates that are removed from configuration, or set Enabled=false, are not dropped automatically; existing aggregate views are left in the database and treated as manually managed.
• Changing the BucketWidthSec creates a different aggregate view name, so a new view is created, while the old view is left in the database until it is removed manually.

When modifying aggregates after they are created, it is often easier to drop and re-create the database or schema to avoid having obsolete views with incorrect retention policies. If that is not possible, make sure to clean up the obsolete views manually.

Advanced ConnectionString Usage

The ConnectionString property is passed to the PostgreSQL client library (libpq) and supports the same formats and environment-variable behavior described in the PostgreSQL documentation.

URI Format

In addition to the keyword/value connection string format (host=... port=... user=...), there is partial support for URI connection strings (for example, postgresql://user:password@host:5432/mydb).

When using a URI, the database name must be included in the URI. In that case, leave the DBName property empty. Automatic database creation is not supported when the database name comes from the URI.

Environment Variables

Connection parameters can also be provided via libpq environment variables, as described in PostgreSQL documentation. Here are some examples of common variables:

• PGHOST=127.0.0.1
• PGPORT=5432
• PGUSER=foo
• PGPASSWORD=bar
• PGDATABASE=mydb

It is allowed to mix connection string parameters with environment variables (for example, only specifying the password via PGPASSWORD).

If the database name is specified via PGDATABASE, leave DBName empty. Automatic database creation is not supported in that case.

Other Properties

When disabling the Hide Internal Items filter, some additional properties become visible. It is normally not necessary to access them.

Installing TimescaleDB

The TimescaleDB datastore requires a running PostgreSQL server with the TimescaleDB extension enabled. You can either install it locally or use a managed provider.

For official installation instructions, see TimescaleDB installation documentation.

Roles and Permissions

TimescaleDatastore connects to PostgreSQL using the configured libpq ConnectionString. While it is easy to get started using a superuser account (for example postgres), for security, prefer a dedicated, least-privileged role for the application and avoid using superuser accounts for normal logging.

If the writer is configured with sufficient permissions, it will:

• Create the target database (if it does not exist and DBName is set)
• Enable the TimescaleDB extension in the database (if not already enabled - most TimescaleDB installations enable it by default for new databases)
• Create the target schema (if the optional Schema property is set and the schema does not exist)
• Create the required tables and indexes (if they do not exist)
• Create and maintain continuous aggregate views and their policies for the configured ValueAggregates
• Write, read, update, and delete data in the tables as needed
• Set a TimescaleDB retention policy based on the ValueLogRetentionDays property (if applicable). Note, the EventLogRetentionDays is enforced by deleting old events during logging, so a delete permission on the event table is enough.

This, however, requires elevated permissions. If the database, schema, and tables are provisioned ahead of time (for example, as part of a deployment or migration process), the connected role can be more limited in what it needs to do.

Common Scenarios

The Role Has CREATE DATABASE Privilege

CREATE ROLE cdp_timescale_writer
  LOGIN PASSWORD 'change-me'
  CREATEDB;

If the user (role) connected via ConnectionString has permission to create databases, and the target database (from DBName) does not exist, TimescaleDatastore will create it, and as the owner of the database, it will have sufficient permissions to create the schema and tables as needed.

Database and Schema Already Exist

In this scenario, the target database and schema already exist, but the role must have sufficient permissions to create and maintain the tables.

CREATE ROLE cdp_timescale_writer
  LOGIN PASSWORD 'change-me';

GRANT CONNECT ON DATABASE mydb TO cdp_timescale_writer;
GRANT USAGE ON SCHEMA myschema TO cdp_timescale_writer;
GRANT ALL PRIVILEGES ON SCHEMA myschema TO cdp_timescale_writer;

Tables Already Exist

If the schema and tables already exist, the connected role only needs permission to read and write the tables.

CREATE ROLE cdp_timescale_writer
  LOGIN PASSWORD 'change-me';

GRANT CONNECT ON DATABASE mydb TO cdp_timescale_writer;
GRANT USAGE ON SCHEMA myschema TO cdp_timescale_writer;
GRANT SELECT, INSERT, UPDATE, DELETE ON ALL TABLES IN SCHEMA myschema TO cdp_timescale_writer;

These are the minimal permissions the writer needs to function. But in this scenario, the schema, tables, aggregate views, and retention policies must be provisioned ahead of time (set ValueLogRetentionDays to -1). If aggregate views are used, their RetentionDays should also be left at -1 (meaning retention settings are inherited from ValueLogRetentionDays), so the limited role does not need to manage aggregate retention policies. This can be done by running the TimescaleDatastore once with a more privileged role and then changing to this limited role later.

Viewing Logged Data

Through CDP Logger's Built-in Server

Logged data can be accessed through CDP Logger's built-in server. That includes CDP Studio Analyze mode, no-code blocks, and clients for Python, and Javascript. See the Viewing Data section in the CDP Logger manual.

The upside of using this method rather than direct database access is that one can just query data without needing to understand which tables to join or how the data is stored.

Direct Database Access

For direct database access, any PostgreSQL tool can be used (for example psql), and the data can be visualized with third-party tools such as Grafana. To access the data programmatically from C++, you can use the CDP2SQL Postgres integration. See the Framework - CDP2SQL manual for a description of how to connect to a Postgres database and run queries. The database format is described below.

The direct database access can also be used for maintenance tasks, such as deleting old data, configuring retention policies, compression, setting up custom continuous aggregates, and so on. Consult the TimescaleDB documentation for details on these features.

Database Format

The datastore creates several tables for keeping logged values, events, and metainfo.

Value Logging

Logged values are stored in a TimescaleDB hypertable named measurement. Each row represents one value change for one logged node at one point in time:

The table is created as a hypertable partitioned by timestamp and node_id, and indexed for efficient per-node time range queries.

The table above preserves the original CDP value types using separate typed columns, which avoids lossy type conversions. However, this can make querying with third-party SQL tools more complex, since one must check the value_type column and select the appropriate typed column for each row. If some loss of precision is acceptable, one could create a view that normalizes the value into a single column with a consistent type (for example, double precision or text), which simplifies querying. Similarly, one could map node_id to the node name for more intuitive queries. Here is an example view definition:

CREATE OR REPLACE VIEW measurement_with_helpers AS
SELECT
    m.timestamp,
    m.node_id,
    n.name AS node_name,
    m.value_type,
    COALESCE(m.value_f64, m.value_i64::double precision, m.value_u64::double precision ) AS value_as_double,
    COALESCE( m.value_text, m.value_i64::text, m.value_u64::text, m.value_f64::text ) AS value_as_text,
    m.logstamp
FROM measurement m
JOIN node n ON n.id = m.node_id;

Continuous Aggregate Views

Each enabled ValueAggregate creates one continuous aggregate view named like measurement_agg_1s or measurement_agg_3600s (the number in the name corresponds to the bucket width in seconds). The view schema is:

The smallest aggregate reads from the raw measurement hypertable. Coarser aggregates are built from the next finer aggregate view instead of re-reading the full raw history.

Value Types

The value_type column stores the original CDP value type of the logged node as an integer:

The corresponding value is stored in one of the typed columns:

• string uses value_text.
• double and float use value_f64.
• uint64 uses value_u64.
• All other integer-like types use value_i64 (interpret/cast based on value_type).
• In case of undefined, all value_* columns are NULL. This is used to mark the moment the logger was closed (meaning the value after that point is unknown).

Node Info

The table named node contains basic information about logged nodes. It maps measurement.node_id value to node name, type and path.

Node Tags

The table named nodetag stores for each logged node the tags fetched by CDP Logger TagLookup (key, value, and source) rules and any custom tags listed by the user in the LoggedValues table.

Event Logging

The table named event stores logged CDP events. Each row represents one event emitted by an event sender.

Event Data

The table named eventdata stores extra key-value data associated with each logged CDP event. For example, CDPAlarm events provide the Text, Group and Level of the alarm in the payload.

The primary key is (id, key).

Event Tags

The table named eventtag stores tags fetched by CDP Logger TagLookup (key, value, and source) rules for each node that generates events. The Tags are associated with an event via event.sender = eventtag.sender.

The uniqueness constraint is UNIQUE(sender, key).

CDP Event Code Flags

Common event codes used in the CDP framework (note that multiple flags can be set at the same time):

Metainfo

The table named keyvalue stores the schema version and some logging parameters, such as LoggingFrequency.

It is normally not needed to access this table directly.
