CDP Studio Documentation

Toolkits

About

This page provides an introduction to the CDP Studio toolkits

What is a Toolkit?

A toolkit is what is needed by CDP Studio to build an application for a target platform. It consists of a collection of tools, libraries and headers for building CDP Studio applications. Each toolkit targets a unique platform, including a hardware architecture, an operating system (OS), and runtime libraries.

Note: After a toolkit has been released, it is only updated with non-breaking bug-fixes and security updates. In some cases, after careful consideration and risk-analysis, new functionality that does not change what is already installed in the toolkit may be added to the toolkit.

Available Toolkits

Different toolkits may be available depending on the Operating System that CDP Studio runs on.

CDP Studio Windows x86 64-bit Edition

From a Windows development environment, CDP 4.10 (and later) applications can be deployed onto the following target operating systems:

CDP Studio Linux x86 64-bit Edition

From a Linux development environment, CDP 4.10 (and later) applications can be deployed onto the following operating systems:

Note: Since new toolkits may be added at any time, the above list may not reflect the full selection of toolkits. The full selection of toolkits can be seen in the Maintenance tool as explained in the next section.

Installing a Toolkit

Toolkits can be added and removed by opening the CDP Studio Maintenance tool. The Maintenance tool is a part of the CDP Studio installation, and is located in the CDP Studio installation directory. It can be started from the CDP Studio Tools Menu, by clicking on the CDP Maintenance Tool menu item and then selecting Start Maintenance Tool. In the Maintenance tool, select Add or remove CDP versions and click Next. A list of all the available toolkits for all the versions that CDP Studio supports is presented, where the installed toolkits have a tick mark in front of the toolkit name:

It is possible to add or remove toolkits by ticking or unticking the box in front of the toolkit name. Adding a toolkit will cause the Package Manager to download and install the toolkit into the CDP Studio installation directory (See Toolkit Location below). Removing a toolkit will remove it from the installation directory.

Note: Removing a toolkit will make you unable to build any projects that use that toolkit until either the toolkit is installed again, or an available toolkit is selected in its place.

Building with a Toolkit

CDP Studio applications and libraries are only built for the selected toolkit(s); see the Deploy Configuration and how to Build the Library for more information about this.

Toolkit Location

The toolkits are located within the CDP Studio installation in a directory named, toolkits. In Windows, the default path is something like this:

C:\CDPStudio\toolkits

and in Linux:

/home/username/CDPStudio/toolkits

Toolkit Compatibility

Each toolkit lists which devices it supports. In general, users should always select a toolkit that matches their target. However, some projects might require specific targets that are not identical to any of the toolkits in CDP Studio. By examining the supported devices and the Dependencies for a toolkit, it should be possible to find out if a toolkit can be used for a given device. In Linux, for instance, newer glibc versions might often be compatible with older glibc versions as long as there are no breaking API or ABI changes.

Toolkit Detector

You can use the Toolkit Detector in the Deploy Configuration to find which Toolkit is best suited for your Linux device. Make sure the device is Paired, then right-click on the device and select 'Run Script' 'Run Toolkit Detector'.

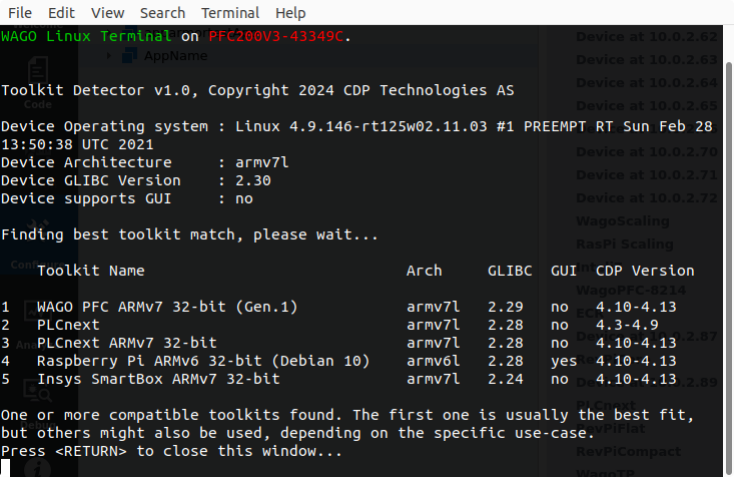

This will run a script on the device that tries to determine the best matching toolkit in relation to the hardware and operating system that is installed on the selected target. It lists what it calculates to be compatible toolkits, with the closest match listed first, and the worst match listed last. You may use this information to select a toolkit to use to deploy applications on the device. Example output:

The output shows which toolkit Architecture and glibc version that match, whether the toolkit supports GUI applications or not, and which CDP versions the toolkit is applicable for.

Performance

The performance of CDP Studio applications depends on target hardware and OS. To achieve the best possible performance, the user should select a Linux target and make sure that it has a kernel configured with RT capabilities. The user doesn't have to select a different toolkit due to kernel configuration.

Note: Windows targets do not have RT capabilities and should not be used in time critical applications.

Using Toolkits Outside CDP Studio

Most users will never need to build and debug applications using the command line, but it should be noted that it is possible for advanced users. Please consult the toolkit in question, and look for the section called Using the Toolkit Outside CDP Studio, which specifies how to use that particular toolkit outside of CDP Studio.

Mixing Libraries

When using toolkits outside of CDP Studio, it is easier to make mistakes. One such mistake is to mix libraries from different toolkits or targets. This is likely to cause build or run-time problems that are difficult to figure out. The code will usually compile, but the linker is likely to complain about missing references or ABI differences. Even if you can make it build, the application could potentially fail in unexpected ways while running on the device.

Note: Never mix libraries and headers from different toolkits.

Extending Toolkits

The toolkits can be extended with more libraries and headers. Shared libraries must be handled with care as they will be required on target when running the application. Also, a shared library might require other shared libraries. Hence, copying and linking shared libraries that wasn't built with the toolkit might cause problems if you don't know what you're doing. See also Third Party Library Support for how to import third party libraries into CDP Studio.

Debugging Tools

CDP Studio provides built-in functionality to be able to debug applications and libraries, as detailed in the Debug Mode Manual. Each toolkit provides these debugging tools, and they can also be used outside of CDP Studio. The cross debugging tools are located in the toolkit folder toolchain/bin, while tools that need to run on the actual target device, like gdbserver, are located within the toolkit folder toolchain\%tuplets%\debug-root\usr\bin. The tuplets part of the path may be different for the different toolkits.

Note: Not all tools are available for all toolkits and the locations might be slightly different.

Note: The gdb debugger that is shipped with the toolkits requires python to run properly. You'll find python in the opt directory of your studio installation. Set the PYTHONHOME variable to this location and make sure that the python dll is available before executing gdb. You might want to revert the environment afterwards as the python version might conflict with other python versions on your system.
